Implementing DDNS (Dynamic DNS) using CloudXNS API

Publish: 2016-12-06 | Modify: 2016-12-06

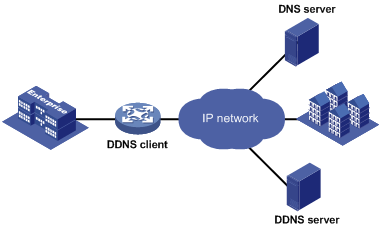

DDNS maps a user's dynamic IP address to a fixed domain name resolution service. Every time the user connects to the internet, the client program will transmit the dynamic IP address of the host to the server program located on the service provider's host, and the server program is responsible for providing DNS services and implementing dynamic domain name resolution.

ddns

Currently, there are many domestic vendors that support DDNS resolution, such as Peanut Shell. If you don't want to use the DDNS service provided by a third-party vendor, you can set it up yourself, for example, using the CloudXNS API to implement DDNS.

一、Getting Ready

  • Requirement: There is a Zmeu host running 24 hours at home, which needs to connect to the public network to provide some services. However, the IP address provided by the ISP is dynamic and changes at any time, so DDNS is needed.
  • System: CentOS 6 X64
  • Environment: PHP 5.6
  • One domain name, and already using CloudXNS DNS

二、Install CloudXNS API PHP SDK

As I know a little bit about PHP, I chose the CloudXNS API PHP SDK. So you need to set up the PHP environment in advance, and then execute the following commands in the site's root directory:

### Download CloudXNS API PHP SDK
wget https://github.com/CloudXNS/CloudXNS-API-SDK-PHP/archive/master.zip
### Unzip
unzip master.zip
### Move
mv CloudXNS-API-SDK-PHP-master/* ./

三、Install SDK

CloudXNS-API-SDK-PHP requires Composer. If you haven't installed Composer yet, please refer to: Installing Composer on CentOS. Then execute composer install in the site's root directory to complete the SDK installation. Complaining: SDK is located overseas, and the installation speed is too slow.

四、Add Execution Script

The CloudXNS API PHP SDK contains a complete DEMO, which can be referred to if needed. Save the following code as ddns.php, and please modify setApiKey and setSecretKey to your own in the CloudXNS backend. Also, please modify test.hixz.org to the record you need to update in CloudXNS.

<?php
    // Get public IP
    $ip = file_get_contents("https://blog.xiaoz.org/ip/userip.php");

    require_once './vendor/autoload.php';
    $api = new \CloudXNS\Api();
    $api->setApiKey('xxxxxxxx');
    $api->setSecretKey('xxxxxxxx');
    $api->setProtocol(true);
    /**
     * Quickly modify the resolution record for DDNS
     * @param string $domain Domain name containing host records
     * @param string $ip IP value, multiple values separated by |, such as 1.1.1.1|2.2.2.2, can be empty
     * @param integer $line_id Line ID, default is 1, can be empty
     */
    echo $api->ddns->ddns('test.hixz.org.', $ip, 1);
    echo $ip;
?>

五、Scheduled Tasks

We can use the crontab scheduled task of Linux to run the script every hour and update the public IP in a timely manner, as follows:

### Add scheduled task
crontab -e
### Add the task to the schedule, running the script every hour
10 * * * * cd /data/wwwroot/test.xiaoz.top/ && /usr/local/php/bin/php ddns.php >> /home/ddns.log 2>&1
### Reload crontab
service crond reload

10 * * * * means 10 minutes past every hour, /data/wwwroot/test.xiaoz.top/ is the website's root directory, and /usr/local/php/bin/php is the installation path of PHP.

六、Testing

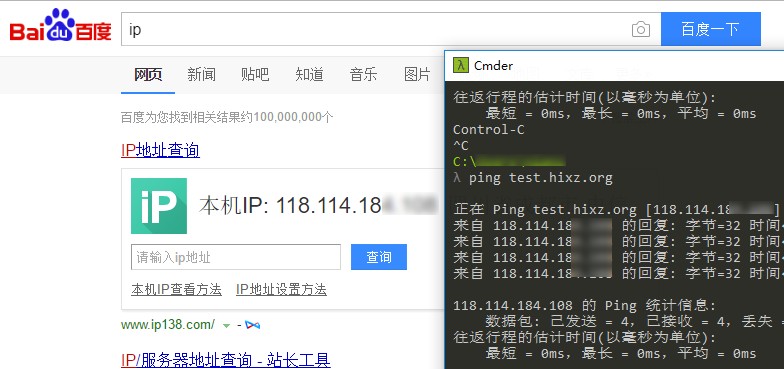

After the successful execution of the script, due to DNS caching, it generally takes about 10 minutes to take effect. We can use the ping command to test whether it is consistent with our own public IP. If it is consistent, it means that the DDNS resolution is successful, as shown in the screenshot below.

ddns_195527

This article refers to: CloudXNS API PHP SDK, original article, please indicate the source when reprinting.
